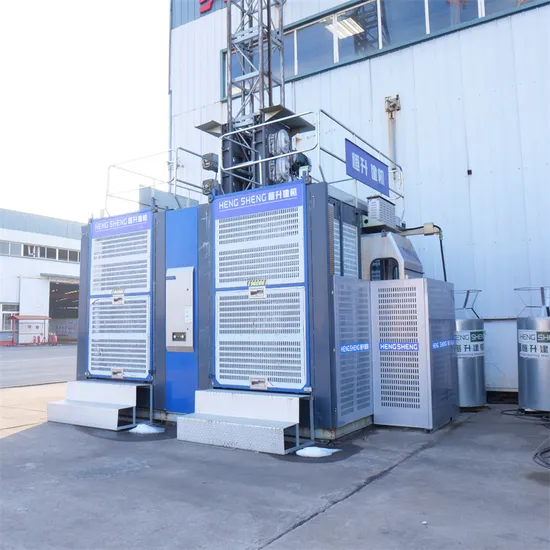

Sc200/200 Construction Hoist Building Material Elevator with CE

Sc200/200 Construction Hoist Building Material Elevator with CE

Package size per unit product 320.00cm * 150.00cm * 240.00cm Gross weight per unit product 4000.000kg Product Descriptio;
Basic Info
Model NO. SC200/200
After-sales Service 1 Year
Warranty 1 Year
Type Stationary
Load Capacity 1T - 2T
Speed 20M/Min - 40M/Min
Usage Construction Hoist
Sling Type Rack
Lift Drive / Actuation Electric Motor
Lift Mechanism Rack
Attendant With Attendant
Deceleration Device With Deceleration Device
Elevator Door Rack
Rated Capacity/Per Cage 1000kg-2000kg
Lifting Speed 0-63m/Min, 0-42m/Min, 0-33m/Min
Motor Power 3*15kw/3*11/2*15/3*18.5
Speed Ratio 1:18 /1:16
Invertor Power 45 Kw/37kw
Safety Device Saj40-1.2/Saj40-1.4/Saj30-1.2
Mast Section Size 0.65*0.65*1.508m
Max. Installation Height 300m
Cable Type Cable Basket/Cable Trolley
Trade Type China Wholesale
Industry Building Material
Parts Elevator Parts
Function Elevator
Name Lifts
Used as Elevators
Transport Package Plastic Film
Specification 3.2*1.5*2.4
Trademark gyt
Origin Fujian, Fuzhou
HS Code 8428109000
Production Capacity 700
Packaging & Delivery
Package size per unit product 320.00cm * 150.00cm * 240.00cm Gross weight per unit product 4000.000kg
Product Description
:
1. Construction hoists could be designed according to different building situations. 2. With ISO9001, CE, SGS, certifications3. Double or Single cage with loading capacity from1000kg to 2000kg. 4. With Frequency converter or DOL control system with low speed, MID speed, and high speed.5. All Production Line adopt special fixtures, mold, gauge made by us to ensure all sizes suitably.6. Select high-quality raw material from China Bao Steel Group. The spare parts of motors, reducers, gearbox, safety device with low noise, while electrics parts of famous Germany brand has reliable quality. 7. The compact and reasonable structure with the special design is easy for installation and adjustment. 8. Each piece of equipment will be tested and made records in Factory and all details will be adjusted such as motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section. 9. The erection test will ensure the completed equipment runs well when taken into use.
Details Specification
ItemConstruction hoist
ModelSC100/100/SC200/200
Rated capacity/per cage1000kg-2000kg
Lifting speed0-63m/min,0-42m/min,0-33m/min
Cage size3.2*1.5*2.4m
Motor power3*15kw/3*11/2*15/3*18.5
Speed ratio1:18 /1:16
Invertor Power45 kW/37kw
Safety deviceSAJ40-1.2/SAJ40-1.4/SAJ30-1.2
Mast section size0.65*0.65*1.508m
Max. Installation height300m
Cable typeCable basket/cable trolley

WHY CHOOSE US?Fuzhou GuangYiTong Machinery is a professional manufacturer and exporter.Our products are construction hoists, suspension platforms, We can do OEM for Our customers.1. 10 years more manufacturing experience and 3 Years exporting experience.2. Great technician Team with innovation and improvement abilities3. Zero accident record and good feedback from the end-users.4. Best price offered with special discount, high quality, and stable operation experience.5. Fast response with sales and after-sale service6. Welcome agents or distributors all over the world for cooperation partnership.



Company Profile
ABOUT US

Guangyitong Heavy Industry Machinery is a comprehensive company, integrating design, production, sales, and leasing. As a professional manufacturer of construction elevators for more than 20 years, it covers an area of nearly 20000 square meters. The production workshops cover 19, 980 square meters. The company has more than 80 employees, 28 engineering technical personnel, including 15 technicians with intermediate and senior titles. The company′s product quality is stable, cost-effective, applicability, high-quality after-sales service, has won a wide range of reputation and has become one high-quality supplier of many well-known construction companies such as MCC, CRCC, CREC, CSCEC in China and some companies in South America, South Asia, Middle East, Africa, and Europ. Production workshop



Details:



Project examples:



EXHIBITION AND CUSTOMER VISIT



FAQ:



1. What are your main products?We produce all kinds of Construction Elevator Passenger materials hoists from 500kg load to 3200kg load (also called construction elevator, construction lift) and spare parts of it.2. Are all Construction Elevators the same from all Vendors & Manufacturers?Our High rise building Construction Elevator Passenger materials hoist with VFD for lifting materials and passengers have been exported to Europe, the Middle, and Southern America, most of Asia, and some countries from Africa, about 50 countries. We can well match European standards, Russian standards, and American standards. We have the technology for developing new design abilities and we support many customers with good solutions to solve their construction site special vertical access problems.3. Do your products have some certificates?Yes. Our building Construction Elevator Passenger materials hoist have passed CE, ISO, SGS Certificates.4. What are the payment terms and the delivery time?Payment terms for building Construction Elevator Passenger materials hoist are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.5. Are you a manufacturer or a trader?We are a manufacturer of building Construction Elevator Passenger materials hoist with 10 years maker experience, have an advanced production line and inspection device. Our Research and development team has got a lot of praise from customers.6. Will you develop a distributor and sole agent?Yes, should you have any interest to be our building Construction Elevator Passenger materials hoist distributor and agent, please let us know in anyways. The sole agent is available depending on sales turnover.7. Where do you ship to and what countries have you done business in?We provide quick and efficient shipping of building Construction Elevator Passenger materials hoist to countries all over the world from Fuzhou port. We have done the business of building Construction Elevator Passenger materials hoists with customers in many countries, such as Mexico, Brazil, Korea, Malaysia, Thailand, India, Vietnam, Indonesia, UAE, Qatar, Kuwait, Saudi Arabia, etc.8. Quotation request:If you are interested in our building Construction Elevator Passenger materials hoist, please provide the following parameters:1) Lift height (m)2) Load capacity (ton)3) Double cage or single cage4) Mast tower coat: Painting spray or hot galvanized?5) Using temperature6) Local power supply (V, Hz)7) Is there any space-limited for your construction site? If yes, give us a brief drawing to show the space plz8) Other special equipment.9) FOB or CIF price? If CIF, plz let us know your destination port.We will provide the best price for building the Construction Elevator Passenger materials hoist once confirmed the above. You can get our feedback within 12 hours!
