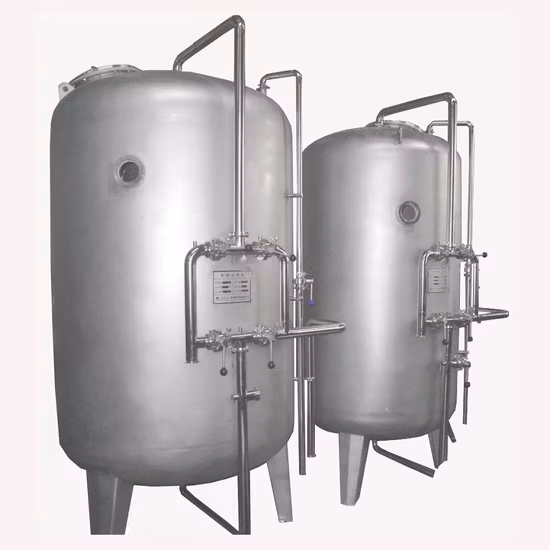

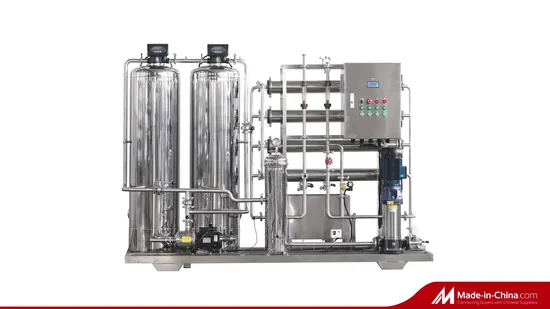

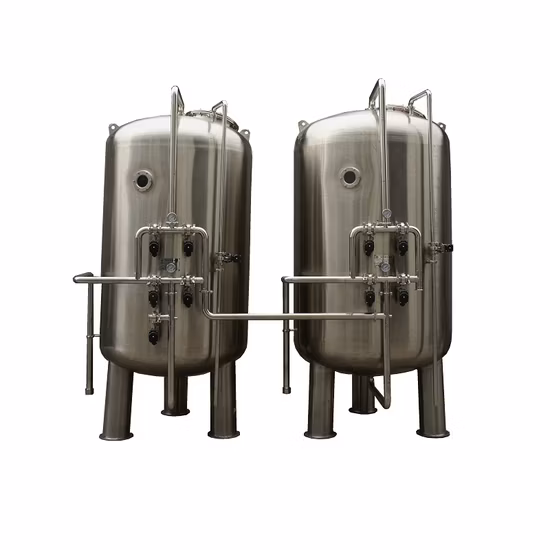

10t/H RO Water Treatment Apparatus

Basic Info

Model NO.	WTRO
Certification	ISO9001, CE
Salt Rejection Rate	99.5%
Application	Water Treatment
Capacity	1-200t/H
Usage	Pure Water System
Function	Removable of Impurities,Desalting etc.
Principle	Reverse Osmosis,Ultrafiltration
Force	Pressure Difference
Recovery Rate	(Permeate Flow / Feed Flow) X 100%
Material	UPVC+Stainless Steel/FRP
Warranty	One Year
Transport Package	Wooden Case
Specification	Pretreatment+RO system (1~200T/H)
Trademark	Wentong
Origin	Wenzhou, China
HS Code	8421219990
Production Capacity	800sets/Year

Product Description

Water treatment apparatus

Product name	ultrafiltration and RO system water treatment machine
Configuration	raw water tank,water pump,multi media filter,activated carbon filter,softener,cartridge filter,high pressure pump, UF unit, RO system,dosing system,washing pump and tank,pure water tank,ultraviolet sterilizer,meters,and other accessories.
Material	UPVC + Stainless steel,FRP
Application	water treatment,water purifying,water filtration,pure water for pharmaceutical,ultra pure water for electronics

Ultrafiltration film technology introduction
Ultrafiltration film is a film filtering between micro-filtering and nanometer-filtering, which is applied to separation,concentration and purfication of substance.
It is generally characterized by the retention component in practical applications, and is mainly used to separate macromolecules, colloids and particles in solution from small molecular substances such as solvents.
Macromolecules, colloids and particles are trapped on the surface of the membrane, and are taken away by the circulation of the substance to form a concentrated solution, which achieves the purpose of substance separation, concentration and purification.

RO membrane technology introduction
Reverse osmosis is to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi-permeable membrane) with sufficient pressure, so it is called reverse osmosis.Reverse osmosis, as an efficient desalination technology, can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water to obtain high-quality purified water.According to the different osmotic pressure of various materials, the reverse osmosis method can be used to achieve the purpose of separation, extraction, purification and concentration.

RO SYSTEM

Model	Capacity(LPH)	Power(kw)	RO membrane(8040 / 4040)
RO-1000	1000	2.5	4040
RO-2000	2000	3.5
RO-3000	3000	4.5
RO-4000	4000	6.5	8040
RO-5000	5000	8
RO-6000	6000
RO-8000	8000	12
RO-10000	10000	18
RO-15000	15000
RO-20000	20000	28

Process flow
Raw water → pre-treatment → RO system → precision filter → post-pretreatment → permeated water output and concentrate drain → ozone sterilizer → pure water tank storage

Single stage RO

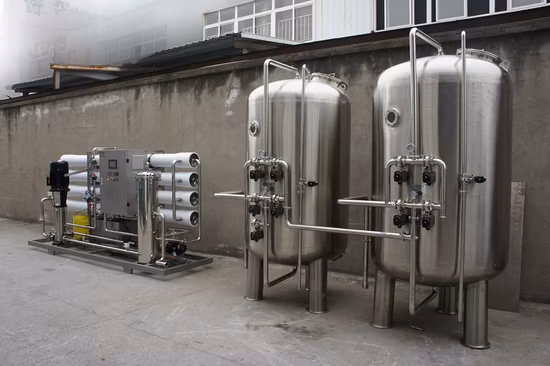

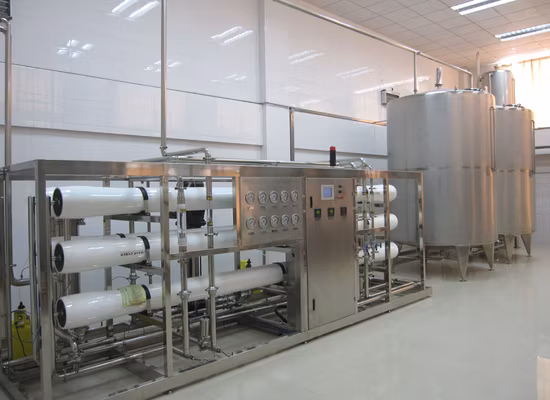

Two-stage RO Water treatment equipment show



FAQ
1.
Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.2.
Q: What's the information you need before order? A1: what's your raw water ? B1: what's the capacity per hour of the equipment ? C1: What's the application of purifier water ?3.
Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.

For more information,send inquiry
